Engine Preheat Kit for SR305 – 4 Cylinder diesel engines

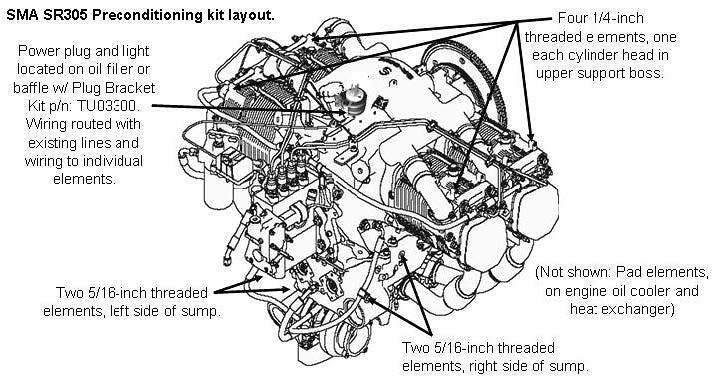

This preheat kit contains threaded heat elements located in each cylinder assembly, 4 threaded heat elements in the oil sump/pan area, a pad element on the oil cooler, and a pad on the heat exchanger. This multipoint configuration fully preheats the engine and attached accessories. Power is routed to the elements through a dedicated wiring assembly with LED system power indication and circuit overload protection standard. The system is self-regulating through design. Heated components reach an average state of thermal equilibrium in approximately six hours.

This preheat kit is compatible with all engine monitor systems as the threaded heat elements that replace intake bolt fasteners.

The preheat kit will supply 480 watts with a 4.2 amp draw at 115 volts.
The preheat kit will supply 480 watts with a 2.1 amp draw at 230 volts.

* Required Bonding sealant sold separately. Quantity 1, PN: TU02788
